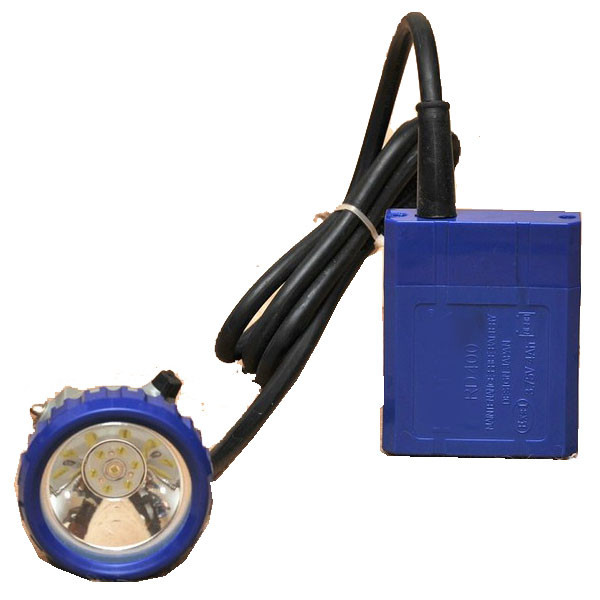

RD400 LED Safety cap lamp with Li-ion battery

RD400 LED Safety cap lamp with Li-ion battery

RD400  LED Safety cap lamp with Li-ion battery

Product Details:

Place of Origin: Shandong China
Brand Name: China Coal

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Container
Delivery Time: Within 15 days after your confirmed
Payment Terms: paypal, L/C, TT
Supply Ability: 6000 sets per month
Contact Now
Detailed Product Description

Product Introduction

1. Application and characteristic

RD400 is special illuminating lamp for workers carrying individually under mine.

This series is our new self-designed generation product. It adopts Ni-H battery, LED

double light sources, with smart size and light weight, free maintenance NIMH battery, and long lifeLED.

2.Working conditions Temperature: 0-40°C

3. Standard

GB 7597-2003 General Requirement for Miner's Lamp Safety

MT 242-2004 KJ Series Miner's Lamp

Q/JY 069-2006 KJ Series Miner's Lamp

4. Explosion-proof type: Exs I

Structure

1. This series lamp is portable, the lamp head and battery part are connected by cable's upper

cover to be a whole miner's lamp. Lamp head could be fixed on cap lamp.

2. A LED main light source is installed in, KJ4.5LM(A), several LED auxiliary light sources.

Clockwise turn on switch, main source and auxiliary sources illuminate alternatively.

3. This battery case is designed with closed wear-ring, convenient for carrying.

4. This lamp head is designed with charging device, matching with charging set, convenient

and reliable for charging.

5. PTC self-protection is set between battery group, and reusable short circuit protective

device is set on cable's battery end. Thus, this is very safe and reliable.

Main Parameter

No.

Rated

capacity

(Ah)

Rated

voltage

(V)

Lighting

time

LED main light source parameter

Life of

service

Valid

storage

period

Weight

(g)

Voltage

(V)

Current

(A)

Luminance(lx)

Lighting

start

Lighting

15h

1

4.5

3.6

≥20

3.6

0.21

4200

4100

600

half a

year

660
