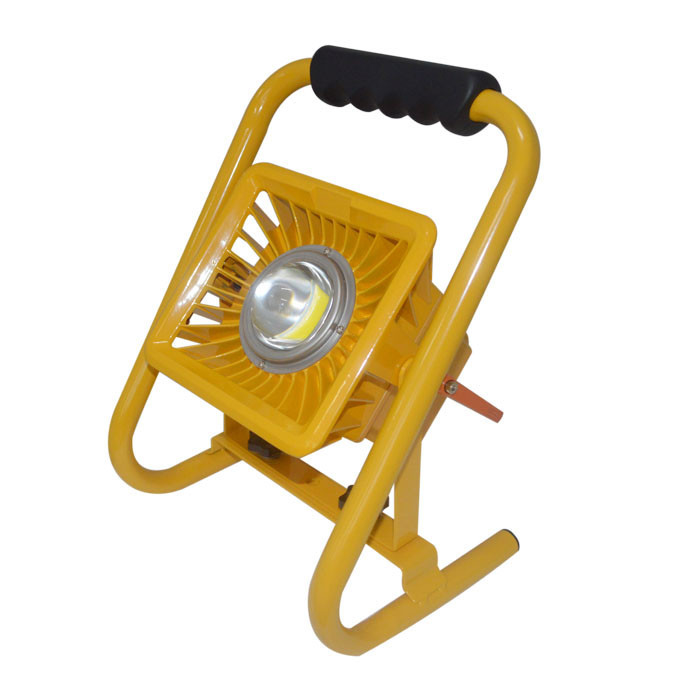

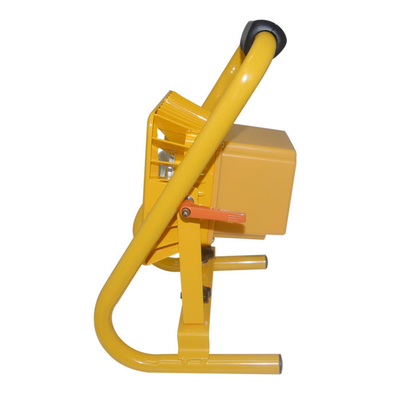

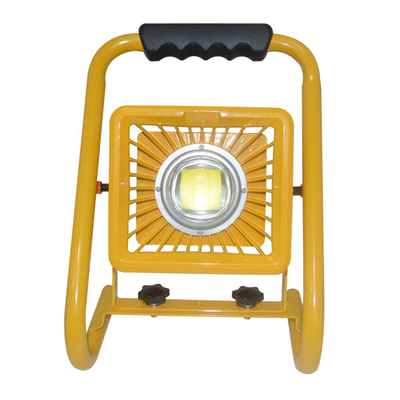

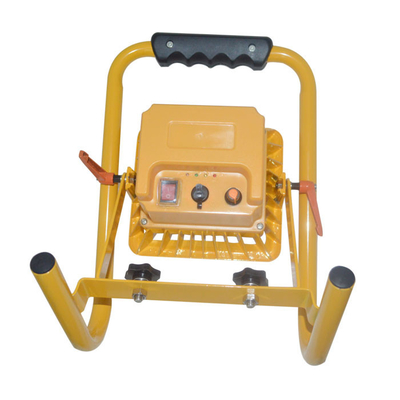

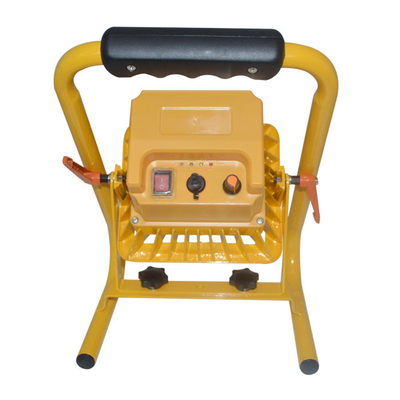

20 Watt Rechargeable LED Flood Light Bridgelux chip 1700lm - 1900lm
Quick Detail:
1.Dimmable and Rechargeable
2.On-board recharging, adapter recharging
3.Battery protection:Overcharge protection and over discharge protection
4.Drive way:constant current and constant voltage
5.With battery status indicator
6.Charging efficiency,less energy loss
7.Outdoor IP67 waterproof
8.CE RoHS certificate
|
LB-PS200-W020-LNB-BB Portable dimmable rechargeable led flood light Main Technical Parameters
|
|
Input Voltage of the adapter
|
AC100-240V
|
System Consumption
|
20W±5%
|
|
Output Voltage of the adapter
|
DC24V±10%
|
LED Luminous Efficiency
|
100LM/W
|
|
Output Current of the adapter
|
2A
|
Led Initial Flux
|
1700-1900lm
|
|
Output Voltage
|
DC18.5 ～ 21V
|
Lamp's Efficiency
|
﹥90%
|
|
Battery Capacity
|
4Ah
|
Illumination Uniformity
|
﹥0.5
|
|
Battery Transport Efficiency
|
﹥92%
|
Color Rendering Index
|
Ra﹥70
|
|
Battery Life-span
|
Charging-discharging 300 times
|
Light Distribution
|
Symmetric /
Circular light spot
|
|
LED Working Voltage
|
DC28-34V
|
Light Design
|
LED LED +
Reflector
|
|
LED Junction Temperature
|
≦35℃
|
Color Temperature
|
WW
|
3000K ±10%
|
|
Working Life-span
|
50000H
|
|
PW
|
4200K ±10%
|
|
IP Grade
|
IP65
|
|
CW
|
6200K ±10%
|
|
Operating Ambient Temperature
|
-40℃～+50℃
|
N.W
|
2.5kg
|
|
Storage Temperature
|
-45℃～+60℃
|
G.W(1pcs/2pcs)
|
3.0kg /7.0kg
|
|
The color of the lamp shell
|
Black Silver Yellow Green
|
Inner box size
|
370*260*235mm
|
|
Certificate
|
CE,ROHS
|
Carton Size(2Pcs)
|
385*275*500mm
|
Please contact us for more details.
Applications:
Mainly used for home lighting,automotive,stall,camping,fishing,emergency lighting,fire lighting,outdoor
lighting and other electrical inconvenient places.
More Detail:
1, Adopt high bright imported single integrated(COB) LED chip as light source, with good heat dissipation , low light depreciation, pure light color, no double-shadow High intensity, high resistance of shock or vibration etc.
2, Unique heat sink design perfectly combine with power box, effectively transmit the heat, thereby lowering the body’s temperature, ensure the life of LED chip and power driver.
3, The heat sink surface have conducted anodic oxidation anticorrosive process., compact layout and beautiful, corrosion resistant, water proof and dust proof.
4, Apparent energy saving effect, use high power LED and it is equipped with imported high efficient power, save more than 70% energy compare with sodium lamp.
5, Eco-friendly non-pollution, no pollution elements such as lead and mercury, non pollution to environment.
Competitive Advantage:
1. CE & RoHS & IP65 approved, Quality Guaranteed
2. Imported original Bridgelux & Epistar chip, superior light source
3. OEM & ODM welcome, more than 1 year OEM experience, independent R&D ability, and patent design.
4. Fast delivery, 5-15 workdays depends on order quantity after payment confirmed
5. Convenient transportation fast delivery, Close & Easy access to both Shenzhen Seaport and Airport.
Reachargeable Flood Light Applications:
Mainly used for home lighting,automotive,stall,camping,fishing,emergency lighting,fire lighting,outdoor
lighting and other electrical inconvenient places.
