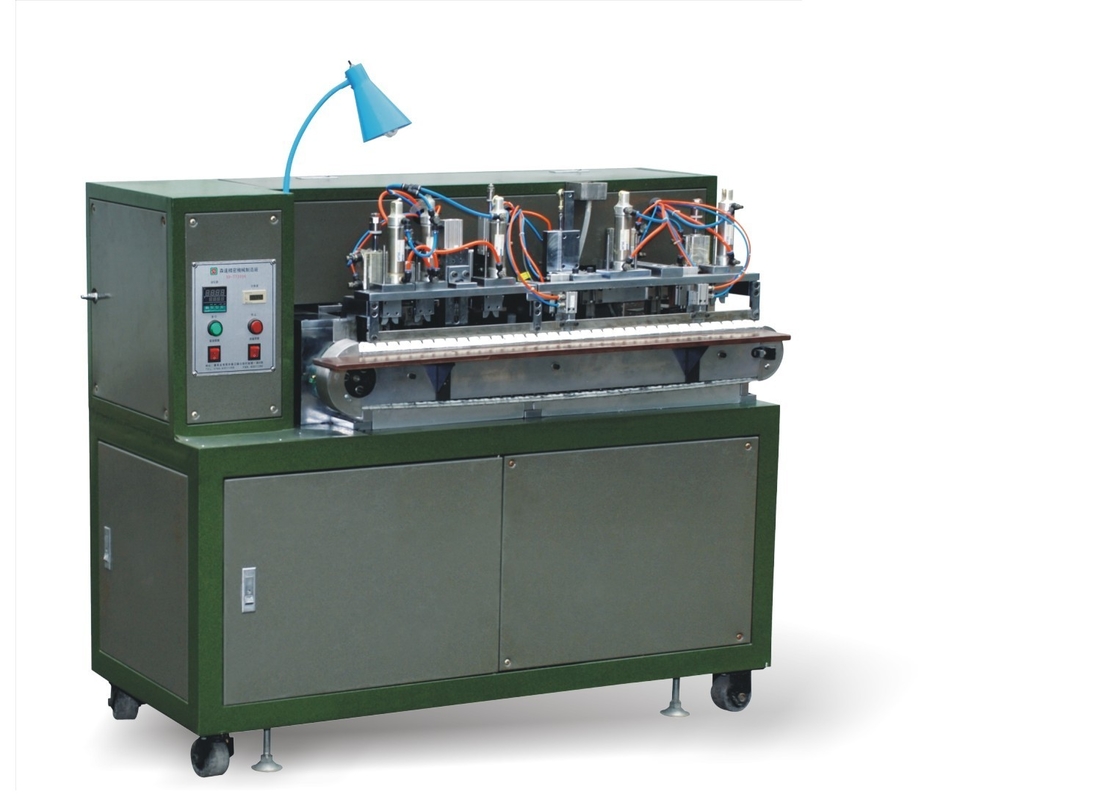

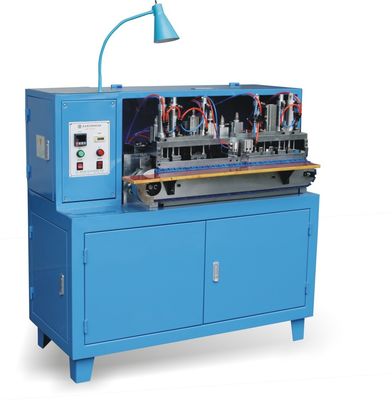

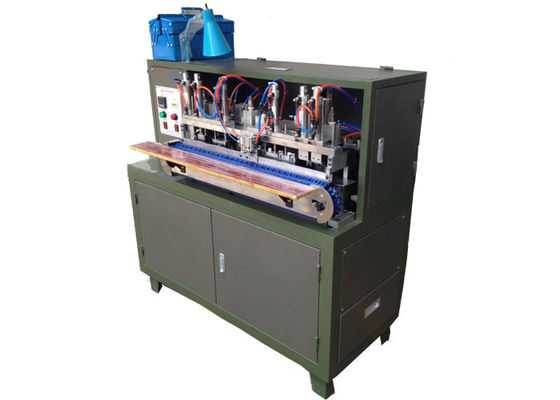

16AWG / 18AWG / 20AWG SPT Lamp Cord Cable Wire Tinning Machine Full - Automated

Product Details:

Place of Origin:	Guangdong China (Mainland)
Brand Name:	Senjia
Certification:	CE
Model Number:	SD-TT2008B

Payment & Shipping Terms:

Minimum Order Quantity:	1/set
Price:	Negotiation
Packaging Details:	Wooden case
Delivery Time:	20-25 working days after receiving advance payment
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	150set/month

Contact Now

Detailed Product Description

High Light:

Automatic Soldering Machine

Automatic Tinning Machine

16AWG /18AWG / 20AWG SPT Lamp Cord Cable Wire Tinning Machine SPT - 1 / 2

Patent No: ZL 2009 2 0005901.4 ( This product has been patented and copying is prohibited )

Quik detail:

Usage	Tinning & Soldering
Color	Blue
Certificate	CE
Feature	Full-automated

Description : The company manufactured SD-TT2008 automatic tin-plating machine is set to divide, strip, twist, tin - plate, flat-cut as a whole, automatically patented product, which is suitable for all types of plant operations. the model structure is uncomplicated and easy to operate, repair, maintain or change its parts. therefore the operator who have whether the work experience or not are safe to operate it.

Applicable cable: SPT-1, SPT-2, H03VVH2-F, H05WH2-F, RVV, VFF

Specification & Parameter:

Model of machine	SD-TT2008B
Pressure connection speed	1,700~2,000pcs/hour
Wire stripping size	6mm~12mm
Max size of slitting	20mm~60mm
Soldering size	3mm~12mm
Stripping length of outer jacket	As per customer’s requirements can be adjusted
Stripping length of conductor jacket	As per customer’s requirements can be adjusted
Voltage	AC220V/50Hz
Pressure of air source	0.5~0.8Mpa
Weight	300kg
Dimension	1,075mm520mm1,125mm

Features:

1, Set sub-line, stripping, twisting, tin-plating, flat-cutting as one whole.
2, Save manpower, electricity, tin-wire and other resources.
3, Effectively increase productivity
4, Compared with the original operation, significantly reduced injury rates.
5, Models with foot pedal operation, reducing operator labor intensity. meanwhile, models can be continuous or intermittent operation, cutlery and parts easy to change.
