China Flashlight Technologies Ltd.
High quality, Best service,Reasonable price.
Place of Origin: | China |
Brand Name: | HHE |
Certification: | CE/ROHS/SGS/EN62471 |
Model Number: | HH-500CJPC |
Minimum Order Quantity: | 10000pcs |
---|---|
Price: | negotiable |
Packaging Details: | anti-plastic bags package: 500pcs/bag Tube package: 500pcs/tube Tape package: 1000pcs/tape |
Delivery Time: | 7 working days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram, paypal |
Supply Ability: | 65,000,000pcs per month |
Keyword: | 5mm LED Diode | Shape: | Round / Straw Hat / Flat Top / Conacave / Oval |
---|---|---|---|
Color: | UV | Wavelength: | 365-370 370-375 380-385 390-395 400-405nm |
Current: | 20mA | Lens Type: | Transparent / Water Clear / Diffused |
Chip Material: | InGaN/GaAsp | Package Type: | Through Hole |
Voltage: | 3.0-3.6V | Viewing Angle: | 30 Degree |
Warranty: | 3 Years | Lifespan: | 50000 Hours |
Highlight: | UV LEDs |

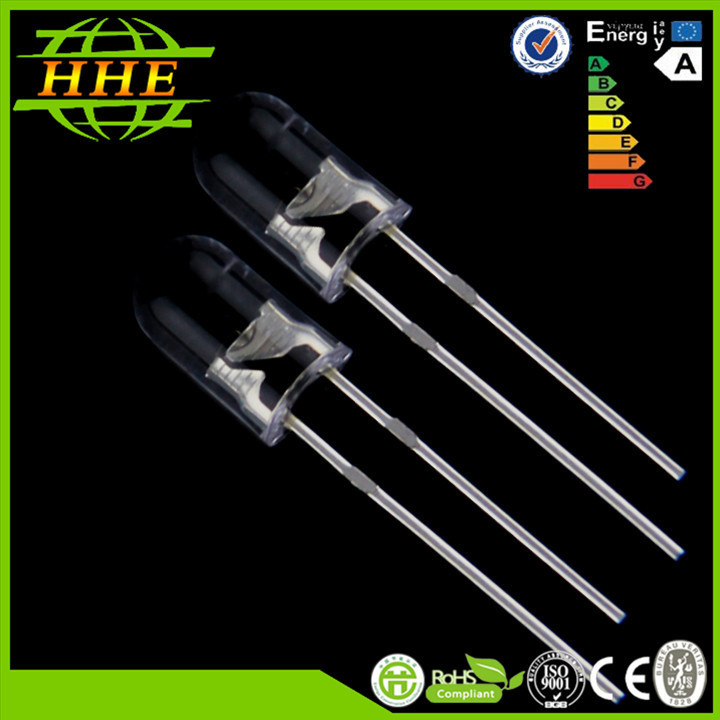

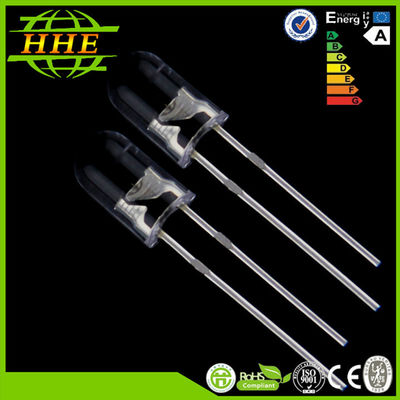

UV 365-370 370-375 380-385 390-395 400-405nm LED 5mm round led diode UV LED
5mm round led diode UV LED
1. Chip Material:InGaN/Gaasp
2. Other available Size: 3mm,5mm,8mm
3. Shape:round led,oval led,straw hat led,helmet led,square led,flat top led,bullet led,concave led,rectangle led
4. Lens type:water clear,color transparent,colored diffuse
5. Other emitted color available:Red,White,Yellow,Orange,yellow-green,Green,Blue
6. Viewing angle: 30/45/60 degree
7. Low power consumption,high intensity,uniform illumination
8. Long life 100,000+hours
Specifications:
Item |
Symbol |
Absolute Maximum Rating |
Unit |
Forward Current |
IF |
20 |
mA |
Peak Forward Current |
IFP |
50 |
mA |
Reverse Voltage |
VR |
5 |
V |
Power Dissipation |
PD |
100 |
mW |
Electrostatic discharge |
ESD |
1000 |
V |
Operation Temperature |
TOPR |
-25~+80 |
℃ |
Storage Temperature |
TSTG |
-40~+80 |
℃ |
Lead Soldering Temperature |
TSOL |
330 ℃ for 3sec Max |
*IFP Co
1. Conditions: Pulse Wide≤10msec≤1/10
*TSOL 2. Conditions:3mm from the base of epoxy bulb
Item |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
Forward Voltage |
VF |
IF=20mA |
2.8 |
3.1 |
3.4 |
V |
Reverse Current |
IR |
VR=5V |
0 |
2 |
5 |
uA |
Light intensity |
IV |
IF=20mA |
100 |
/ |
200 |
mcd |
Viewing Angle |
2θ1/2 |
IF=20mA |
|
30 |
|
deg |
Luminous Flux |
Φ |
IF=20mA |
0.1 | / | 0.2 | lm |
Wavelength |
WLD |
IF=20mA |
390 |
392.5 |
395 |
nm |
Recommend Forward Current |
IF(rec) |
IF=20mA |
|
|
20 |
mA |
Notes:
1. Work absolute ratings Ta=25℃
2. Tolerance of measurement of forward voltage±0.1V
Trade terms and Payment:
Minimum Order Quantity: |
10000pcs |
Price: |
Negotiation |
Trade terms |
EXW, FOB, CIF, D/P, EMC, EMBT, BT |
Payment Terms: |
T/T, Paypal, western Union, L/C |
Supply Ability: |
65,000,000pcs per month |
Delivery Time: |
7-30 working days according to order quantity |
Packaging type |
anti-plastic bags package: 500pcs/bag Tube package: 500pcs/tube Tape package: 1000pcs/tape |
Applications:
1. Money detector
2. Indoor and Outdoor Commercial Lighting
3. Architectural Lighting
4. General Lighting
5. Automotive Lights
6. Mood Lighting, LED module
7. Traffic Light
8. LCD TV / Monitor Back Lights
9. LED display
10. Reading Light, LED Torch
11. Craft Flashlights, Headlights.
HHE Main selling products:
High Power led: From 1 watt led to 400 watt Led in all colors.
Led diodes: round led, flat top led, concave led, nipple led, straw hat led, bullet led, oval led,
piranha led, square led from 2mm to 10mm.
SMD LED: 2835, 5050, 3528, 1206, 0603, 020 etc.
Led UV nail lamp: from 6w to 60w led UV nail lamp.
Led street light: from 50w to 330w fashion led street lights
Led grow light: all kinds of power and shape are available
Led aquarium light: all kinds of power available
Color available: red, green, blue, yellow, white, UV, IR, RGB, bi-color, etc. Available
Wavelength available: from 265nm to 940nm.
