1050mA 30-34V 520-530nm 30W integrated green high power led diodes
Specification:
Electrical / Optical Characteristics at TA=25℃
|
Parameter
|
Symbol
|
Min
|
Typ.
|
Max.
|
Unit
|
Test Condition
|
|
Luminous Intensity
|
∮
|
2100
|
2250
|
2400
|
Lm
|
IF =1050mA
|
|
Viewing Angle
|
2θ1/2
|
110
|
120
|
130
|
deg
|
IF =1050mA
|
|
Wavelength
|
nm
|
520
|
522.5
|
525
|
NM
|
IF =1050mA
|
|
Forward Voltage
|
vF
|
30
|
32
|
34
|
v
|
IF =1050mA
|
|
Reverse Current
|
IR
|
|
|
10
|
uA
|
VR = 5V
|
Absolute Maximum Ratings at TA=25℃
|
Parameter
|
Maximum Rating
|
|
Power Dissipation
|
30W
|
|
Peak Forward Current(1/10 Duty Cycle, 0.1ms
Pulse Width)
|
2100mA
|
|
Continuous Forward Current
|
1050mA
|
|
Derating Linear From 30℃
|
0.07mA/℃
|
|
Reverse Voltage
|
5V
|
|
Operating Temperature Range
|
-20℃ to + 80℃
|
|
Storage Temperature Range
|
-30℃ to + 100℃
|
|
Lead Soldering Temperature
[1.6mm(.063") From Body]
|
260℃ for 5 Seconds
|
Notes:
1. Work absolute ratings Ta=25℃
2. Tolerance of measurement of forward voltage±0.1V

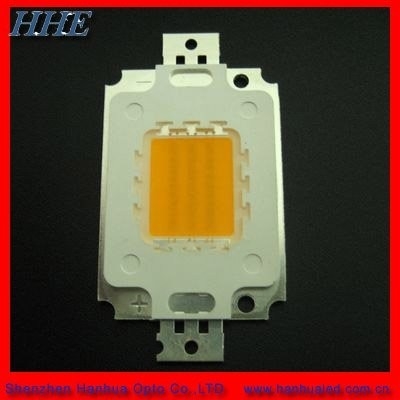

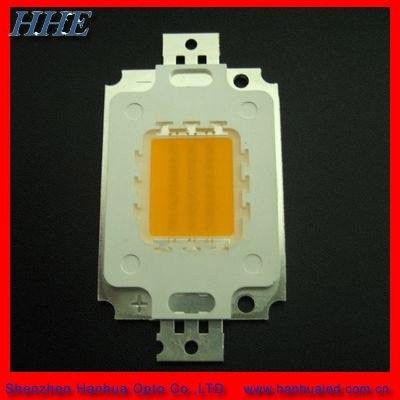

Product photos:
Applications:
street light,torch lights,printer ink curing, automotive exterior,edge-lit signs,decorative,cove
lighting,advertising signs, circuit board, computer,monitor, portable equipment, project building,
status indicator, telephone, traffic signal lights and automotive, channel letter lighting,etc...
Descriptions:
1. Emitted Color: green
2. Chip: Epistar/Epileds/Bridgelux/Huga/Genesis photonics/Cree
3. Chips number:30pc
4. Other colors: red,yellow,blue,green,white,warm white and cool white,bi-color, rgb,etc
5. Low power consumption, high intensity, uniform illumination
6. Available power:0.5w,1w and 3w,5w,10w,30w,50w,100w
7. Solid-state, high shock and vibration resistant
8. Major reduction in power cost
9. No RF interference
10. Maintenance free, easy installation
11. Long life 50,000+hours
12. Superior ESD protection
About us:
Factory area: 5000 square meter
Total revenue:$ 13000000
Number of employee: 200
Company information: high standard dust free workshops and advanced entire automated
electron system: ASM from USA, dispensing system from Japan, die bonding from Singapore
etc. Capacity: 65000000pieces per month from high power led, 85000000pieces per month
from dip led, 95000000pieces per month from smd led, 10000pieces per month from integrated led.
Our team and partners:
With a very professional sales team, and won international reputation and successfully established
good relations with customers.
Our business:Our business quickly expands to global markets and the main markets are Europe, North America,
Australia, Middle east, and Southeast Asia, and Hongkong, and China mainland as well.
