NEW DESIGN:25000lux,12.4Ah,348lumen,1.8W,IP68LED Corded Miner Lamp
LED Cap Lamp Introduction:
NEW DESIGN: 25000lux, 12.4Ah, 348lumen, 1.8W, IP68 LED Corded Miner Lamp
Widely use ! For industrial lighting and fire lighting !
lighting distance, long lifespan of 100000hours , IP68 20meters diving water-proof grade.
fireman lighting.
High capacity Li-ion battery, 6hours charging time !
12400mAh rechargeable Li-ion battery for 18hours working time to meet the long
working time underground. Charging full in 6hours.
LED Cap LampTechnical information:
NEW DESIGN: 25000lux,12.4Ah,348lumen,1.8W,IP68 LED Corded Miner Lamp
| Technical Specifications | GL12-A cord cap lamp |
| Light source | one main light and two auxiliary lights |
| Battery capacity | 12.4Ah |
| Rated Voltage | 3.7V |
| Main light current (strong light) | 1000mA |
| Main light current (working light) | 600mA |
| Power of the main light (strong light) | 3w |
| Illuminous(strong light) | 348LUM |
| Illuminous(working light) | 240LUM |
| Brightness of the main light (strong light) | 25000lux |
| Brightness of the main light (working light) | 15000lux |
| Power of the main light (working light) | 1.8W |
| Life span for main LED | 100000hours |
| Battery cycles | 1200 cycles |
| Charging time | 6 hours |
| Cable length | 1.2m 0r 1.6m |
| Weight | 490g |
| Water-proof grade | IP68 |
| Certified | CE&ATEX |
LED Cap LampFeatures:
NEW DESIGN: 25000lux,12.4Ah,348lumen,1.8W,IP68 LED Corded Miner Lamp
GL12-A
Multiful Function and High Performance Cap Lamp!
The brightest light and best safety for yours.
Brightness is up to 25000lux !
Weight is light for portable use.
Fire-resistant,flame retardant,crash-proof, water-proof,
dust-proof, high temperature resistant ,high reliable and durable.

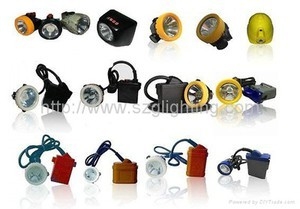

Different Mining Cap Lamps:
LED Cap LampApplication:
It can be used in Mine, underground working .Patrolling, Overhauling and emergency
in electrical power company, Military, Police, Fire Fighting, dockyard and other
hazardous locations ect.
LED Cap LampProduction Line:
LED Cap LampPacking:
We will pack the cap lamps as per your special requirement properly.
LED Cap LampPacking Process:
OurLED Cap LampShowroom:
LED Cap LampTransport and Storage:
(1) The miner’s lamp isn’t allowed to suffer the severe mechanical shock and exposure
to rain,and should avoid throwing,rolling and pressing heavily in the transportation.
(2) This product’s effective storage period is one year.The temperature should be -20℃～40℃,and should be deposited in the dry,clean,well-ventilated and non-corrosive
media warehouse.Stay away from fire and heat.
LED Cap LampTransportation Solutions:
LED Cap LampTrouble Shooting:
(1) If abnormal phenomena happen but the lamp is in the normal using status,must be
careful to check the reason firstly.Then deal with the problem.
(2) The lighting time is not enough
| No | Reason | Treatment |
| 1 | No enough charging | First,should check if the connection between the
charger’s output plug and lamp’s charging socket
is good |
| 2 | Using too long to achieve life | Replace the lamp |
| 3 | Charger does not work | Check if the indicator of charger is good and also
check if the connection of charger’s AC power
endpoint is good |
(3) The lamp is off suddenly when it works
Reason:short circuit or battery power runs out
Treatment:turn off the main light source,restart,then the lamp should be on (remark:
the lamp has a circuit breaker);It is is still off after restarting,please charge the battery.
If it still doesn’t work after charging,it means the lamp has some problems,delivery the
lamp to factory for repair.
LED Cap LampAfter sales service:
1.At least One year warranty.
2.Within the warranty year,we can fix the lamp for you for free.
3.Out of the warranty year,we still can fix it for you,but you need to pay a little charge.
4.Customized design is available,accept OEM and ODM.
If you have any question or suggestion,plz contact the service.
