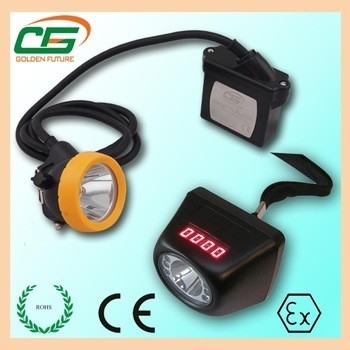

KL4.5LM digital and cordless led miners cap lamp: more than 4500 lux
KL5M(c) miner lamp : 15000 lux with low power indication
Description:
KL4.5LM is a new style of cordless cap lamp with digital device to show the lamp number, time, and batter balance, and remind user to recharge it when the power is not enough.
American CREE 1 watt LED as main light and 6pcs auxiliary light.
More than 4500 lux for main light, continuous lighting time is more than 15 hours.
4.5Ah li-ion rechargeable battery. All in once case with bulletproof PC housing.
CE/ATEX/SABS/TUV/MSHA approved
KL5LM(C) cord cap lamp with low power indication.
American CREE 1 watt LED as main light, and 6pcs auxiliary light.
Lighting degree for main light is more than 15000 lux, and continuous lighting time is more than 15 hours.
The main light will flash one time per 6 seconds to remind the user to recharge it when power is not enough 6.6Ah li-ion rechargeable battery.
Aluminum charger with MCU controlled charging system to charge the battery more quickly and stable.
CE/ATEX approved
Electronic Datas:
KL4.5LM
Features
Value
Unit
Light souce
LED Power
1
W
Lighting degree
>4500
Lux
Life time
>50,000
Hour
Li-ion battery
Rated capability
4.5
Ah
Rated voltage
3.7
V
Continuous working time
>15
Hour
Charging time
<6
Hour
Life time
1000
Circle
Charging voltage and current
409V/1A
Accessory light usage life hour
100,000
Hour
Short circuit protect time
<15
ms
Weight ( with battery )
<215
g
IP Class
IP65
EX MARK:
ExiallBT4
KL5LM ( C )
Features
Value
Unit
Light souce
LED Power
1
W
Lighting degree
>15000
Lux
Life time
>50,000
Hour
Li-ion battery
Rated capability
6.6
Ah
Rated voltage
3.7
V
Continuous working time
>15
Hour
Charging time
<6
Hour
Life time
1000
Circle
Charging voltage and current
4.2V/1.5A
Accessory light usage life hour
100,000
Hour
Short circuit protect time
<15
ms
Weight ( with battery )
<500
g
IP Class
IP65
EX MARK:
ExiallBT4
Advantages :
Safety: All the housing materials are bulletproof PC, which is very strong to afford heavy impact or high dropping.
MCU controlled protection in electrical short-circuit, automatic power-off on the socket ,
it is explosion proof, waterproof and dustproof, and ATEX Certified for use in explosive atmospheres such as coal mines.
Reliability: Tough housing, optimized design, a solid LED light that uses high efficient IC drivers guarantee the product is durable and strong.
The durable Li-ion battery has an over-charge and over-discharge protection system to protect the battery from over charge or over discharge.
Efficiency: more than 15 hours at full brightness for main light, and more than 60 hours continuous lighting for auxiliary light.
Battery usage lifetime about 1000 cycles
Environmental: The cap lamp is made from environmentally friendly Li-ion battery and other non hazardous materials as per RoHS Directive.
Economy: no requirement to replace bulbs, lifetime of li-ion battery is three times longer than lead-acid cap lamp and saving in maintenance makes the product more compatible in price
